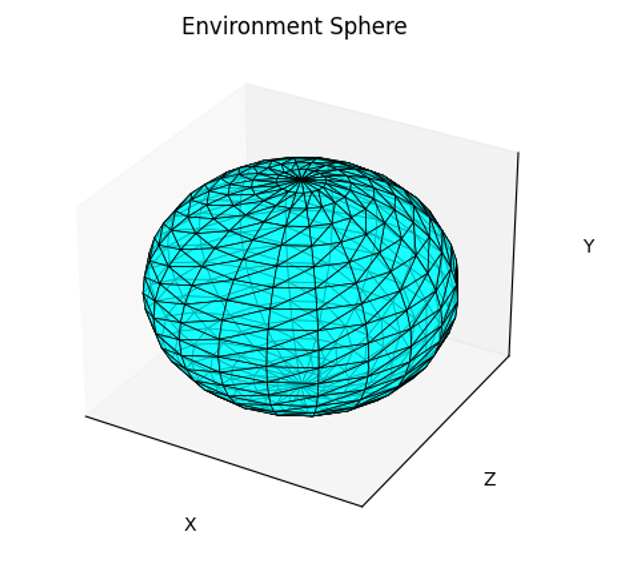

LightSim3D creates realistic ambient lighting by enclosing the scene within a large sphere. This environment sphere is generated using a UV mapping technique that divides the sphere into horizontal rings and vertical sectors. Each vertex is calculated using spherical coordinates, and these vertices are then connected to form a mesh of triangles.

For every quad on the sphere’s surface, two triangles are produced to ensure complete coverage. The algorithm computes normals for each triangle and inverts them when necessary so that they face inward for accurate light emission. Material properties, such as emission and albedo, are assigned to these triangles, allowing the sphere to act as a natural light source that enhances indirect illumination and overall scene realism.

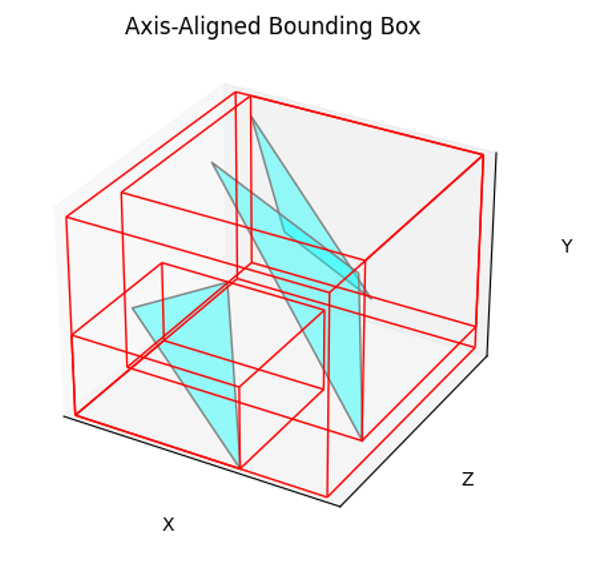

LightSim3D employs a Bounding Volume Hierarchy (BVH) to organize scene geometry and reduce the number of intersection checks required for each ray. During construction, it computes an axis-aligned bounding box (AABB) for every triangle and partitions the scene by splitting along the axis of maximum extent in the centroid distribution. This recursive subdivision places small groups of triangles into leaf nodes and larger groups into internal nodes.

At runtime, ray-scene intersection tests traverse the BVH rather than iterating over all triangles. By quickly ruling out entire subtrees where the ray misses the node’s bounding box, the traversal performs far fewer intersection checks. This significantly boosts performance, especially in scenes with many triangles, by reducing complexity from linear in the number of triangles to approximately logarithmic.

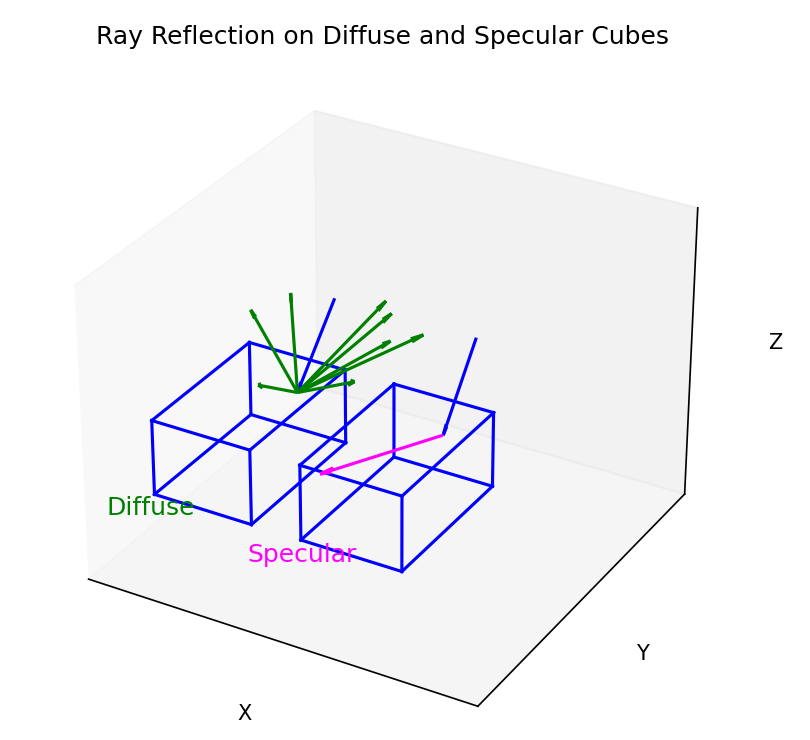

LightSim3D uses a Monte Carlo path tracer that integrates both diffuse and specular reflection by accumulating the color contributions from many ray simulations per pixel. For each pixel, multiple rays are generated and their computed radiances are averaged to produce the final color. This accumulation over multiple samples reduces variance and converges toward a physically accurate result as the sample count increases.

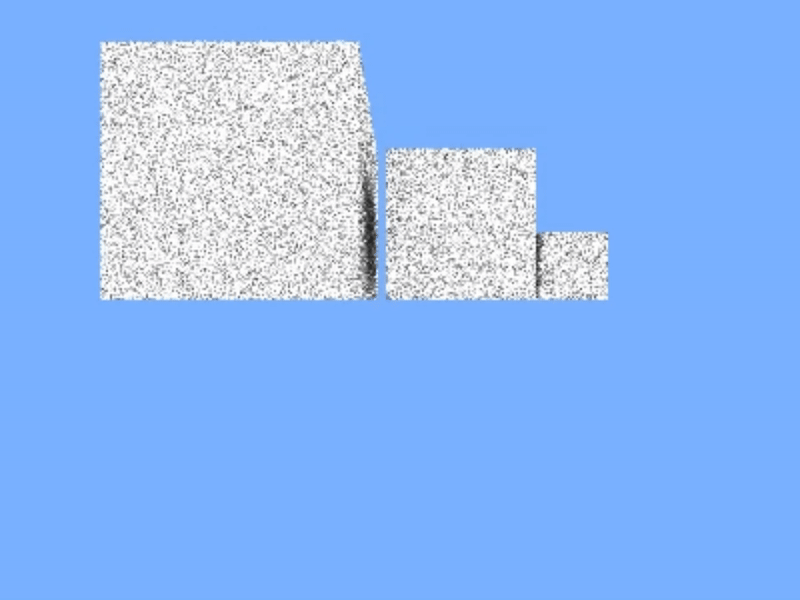

For diffuse (matte) surfaces, the tracer uses cosine-weighted hemisphere sampling for scattered bounces and incorporates next-event estimation by directly sampling an emissive triangle. This technique minimizes noise in soft shadow regions by explicitly evaluating the contribution of light sources. Before adding the light’s contribution, a shadow (or occlusion) ray is cast from the hit point toward the light sample. If any geometry blocks this ray—detected via BVH traversal—the light contribution is discarded, thereby mimicking realistic shadow effects.

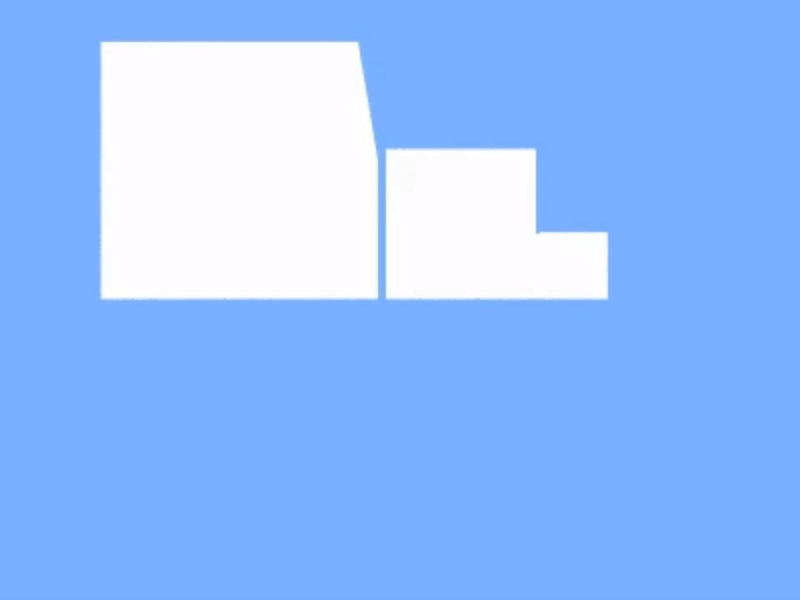

For specular (metallic) surfaces, a perfect mirror reflection model is applied along with Schlick’s approximation to compute Fresnel reflectance, smoothly blending the surface’s base reflectance with its metallic albedo.

Recursive evaluation of each ray—with Russian roulette termination to discard low-contribution paths—ensures that the integration across multiple bounces captures the complex interplay of light in the scene.
